4040XPT
Series

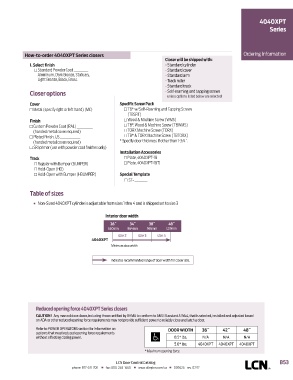

How-to-order 4040XPT Series closers Ordering Information
Closer will be shipped with:
1. Select finish - Standard cylinder
Standard Powder Coat __________ - Standard cover
Aluminum, Dark Bronze, Statuary, - Standard arm
Light Bronze, Black, Brass. - Track roller
- Standard track
Closer options - Self-reaming and tapping screws
unless options listed below are selected.
Cover Specific Screw Pack
Metal (specify right or left hand) (MC) TB* w/Self-Reaming and Tapping Screws
(TBSRT)
Finish Wood & Machine Screw (WMS)
Custom Powder Coat (RAL) ___________ TB*, Wood & Machine Screw (TBWMS)
(handed metal cover required) TORX Machine Screw (TORX)
Plated Finish, US ______________ TB* & TORX Machine Screw (TBTORX)
(handed metal cover required) * Specify door thickness if other than 1-3/4˝.
SRI primer (use with powder coat finishes only)
Installation Accessories
Track Plate, 4040XPT-18
Regular with Bumper (BUMPER) Plate, 4040XPT-18TJ
Hold-Open (HO)
Hold-Open with Bumper (HBUMPER) Special Template
ST- _________

Table of sizes

n Non-Sized 4040XPT cylinder is adjustable from sizes 1 thru 4 and is shipped set to size 3

Interior door width
26˝ 34˝ 38˝ 48˝
660mm 864mm 965mm 1219mm
size 2 size 3 size 4
4040XPT
Minimum door width

Indicates recommended range of door width for closer size.

Reduced opening force 4040XPT Series closers
CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based
on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
Refer to POWER OPERATORS section for information on DOOR WIDTH 36˝ 42˝ 48˝
systems that meet reduced opening force requirements
without effecting closing power. 8.5* lbs. N/A N/A N/A
5.0* lbs. 4040XPT 4040XPT 4040XPT
* Maximum opening force.

LCN Door Control Catalog B53
