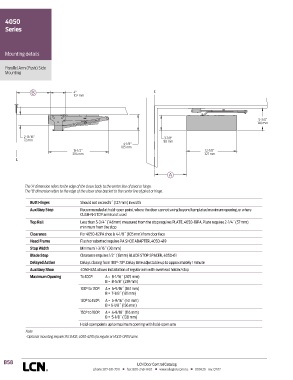

4050
Series

Mounting details

Parallel Arm (Push) Side
Mounting

B 4" C L
102 mm

5-3/4”
146 mm

2-13/16" 3-7/8"
72 mm 98 mm
4-1/8"
105 mm
15-1/2" 12-7/8”
394 mm 327 mm
C L

A

The 'A' dimension refers to the edge of the closer body to the center line of pivot or hinge.
The 'B' dimension refers to the edge of the closer shoe bracket to the center line of pivot or hinge.

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended at hold-open point, where the door cannot swing beyond templated maximum opening, or where
CUSH-N-STOP arm is not used
Top Rail Less than 5-3/4˝ (146mm) measured from the stop requires PLATE, 4050-18PA. Plate requires 2-1/4˝ (57 mm)
minimum from the stop
Clearance For 4050-62PA shoe is 4-1/8˝ (105 mm) from door face
Head Frame Flush or rabetted requires PA SHOE ADAPTER, 4050-419
Stop Width Minimum 1-3/16˝ (30 mm)
Blade Stop Clearance requires 1/2˝ (13mm) BLADE STOP SPACER, 4050-61
Delayed Action Delays closing from 180°-70°. Delay time adjustable up to approximately 1 minute
Auxiliary Shoe 4050-62A allows installation of regular arm with overhead holder/stop
Maximum Opening To 100°: A = 8-1/16˝ (205 mm)
B = 8-5/8˝ (219 mm)
100° to 130°: A = 6-9/16˝ (167 mm)
B = 7-1/8˝ (181 mm)
130° to 150°: A = 5-9/16˝ (141 mm)
B = 6-1/8˝ (156 mm)
150° to 180°: A = 4-9/16˝ (116 mm)
B = 5-1/8˝ (130 mm)
Hold-open points up to maximum opening with hold-open arm
Note:
• Optional mounting requires PA SHOE, 4050-62PA for regular or HOLD-OPEN arms

B58 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
