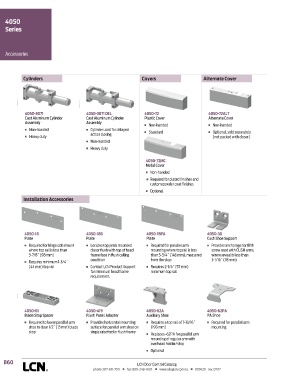

4050
Series

Accessories

Cylinders Covers Alternate Cover

4050-3071 4050-3071 DEL 4050-72 4050-72ALT
Cast Aluminum Cylinder Cast Aluminum Cylinder Plastic Cover Alternate Cover
Assembly Assembly
n Non-handed n Non-handed
n Non-handed n Cylinder used for delayed n Standard n Optional, sold separately
action closing
n Heavy duty (not packed with closer)
n Non-handed
n Heavy duty

4050-72MC
Metal Cover
n Non-handed
n Required for plated finishes and
custom powder coat finishes
n Optional
Installation Accessories

4050-18 4050-18G 4050-18PA 4050-30
Plate Plate Plate Cush Shoe Support
n Required for hinge side mount n Locates top jamb mounted n Required for parallel arm n Provides anchorage for fifth
where top rail is less than closer flush with top of head mounting where top rail is less screw used with CUSH arms,
3-7/8˝ (98 mm) frame face in flush ceiling than 5-3/4˝ (146 mm), measured where reveal is less than
condition from the stop 3-1/16˝ (78 mm)
n Requires minimum 1-3/4˝
(44 mm) top rail n Contact LCN Product Support n Requires 2-1/4˝ (57 mm)
for minimum head frame minimum top rail
requirement.

4050-61 4050-419 4050-62A 4050-62PA
Blade Stop Spacer Flush Panel Adapter Auxiliary Shoe PA Shoe
n Required to lower parallel arm n Provides horizontal mounting n Requires a top rail of 7-13/16˝ n Required for parallel arm
shoe to clear 1/2˝ (13 mm) blade surface for parallel arm shoe on (198 mm) mounting
stop single rabetted or flush frame n Replaces -62PA for parallel arm
mounting of regular arm with
overhead holder/stop
n Optional

B60 LCN Door Control Catalog
