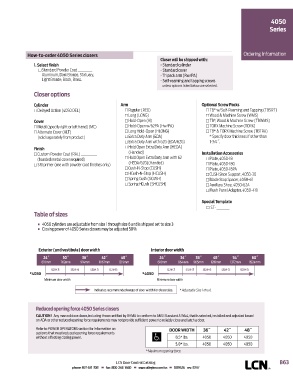

Page 95 - Herrajes Patricios - Catalogo LCN

4050
Series

How-to-order 4050 Series closers Ordering Information
Closer will be shipped with:
1. Select finish - Standard cylinder
Standard Powder Coat __________ - Standard cover
Aluminum, Dark Bronze, Statuary, - Tri pack arm (Rw/PA)
Light Bronze, Black, Brass. - Self-reaming and tapping screws
unless options listed below are selected.
Closer options

Cylinder Arm Optional Screw Packs
Delayed Action (4050 DEL) Regular (REG) TB* w/Self-Reaming and Tapping (TBSRT)
Long (LONG) Wood & Machine Screw (WMS)
Cover Hold-Open (H) TB*, Wood & Machine Screw (TBWMS)
Metal (specify right or left hand) (MC) Hold-Open w/62PA (Hw/PA) TORX Machine Screw (TORX)
Alternate Cover (ALT) Long Hold-Open (HLONG) TB* & TORX Machine Screw (TBTRX)
(sold separately from product) Extra Duty Arm (EDA) * Specify door thickness if other than
Extra Duty Arm with 62G (EDA/62G) 1-3/4˝.
Finish Hold Open Extra Duty Arm (HEDA)
Custom Powder Coat (RAL) ___________ (Handed) Installation Accessories
(handed metal cover required) Hold Open Extra Duty Arm with 62 Plate, 4050-18
SRI primer (use with powder coat finishes only) (HEDA/62G)(Handed) Plate, 4050-18G
Cush-N-Stop (CUSH) Plate, 4050-18PA
HCush-N-Stop (HCUSH) CUSH Shoe Support, 4050-30
Spring Cush (SCUSH) Blade Stop Spacer, 4050-61
Spring HCush (SHCUSH) Auxiliary Shoe, 4050-62A
Flush Panel Adapter, 4050-419

Special Template
ST- _________
Table of sizes

n 4050 cylinders are adjustable from size 1 through size 6 and is shipped set to size 3
n Closing power of 4050 Series closers may be adjusted 50%

Exterior (and vestibule) door width Interior door width
24˝ 30˝ 36˝ 42˝ 48˝ 24˝ 34˝ 38˝ 48˝ 54˝ 60˝
610mm 762mm 914mm 1067mm 1219mm 610mm 864mm 965mm 1219mm 1372mm 1524mm
size 3 size 4 size 5 size 6 size 2 size 3 size 4 size 5 size 6
*4050 *4050
Minimum door width Minimum door width

Indicates recommended range of door width for closer size. * Adjustable Size 1 thru 6.

Reduced opening force 4050 Series closers
CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based
on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
Refer to POWER OPERATORS section for information on DOOR WIDTH 36˝ 42˝ 48˝
systems that meet reduced opening force requirements
without effecting closing power. 8.5* lbs. 4050 4050 4050
5.0* lbs. 4050 4050 4050
* Maximum opening force.
