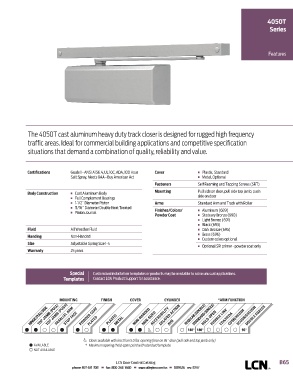

4050T
Series

Features

The 4050T cast aluminum heavy duty track closer is designed for rugged high frequency
traffic areas. Ideal for commercial building applications and competitive specification
situations that demand a combination of quality, reliability and value.

Certifications Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Cover n Plastic, Standard
Salt Spray, Meets BAA - Buy American Act n Metal, Optional
Fasteners Self Reaming and Tapping Screws (SRT)
Mounting Pull side on door, pull side top jamb, push
Body Construction n Cast Aluminum Body
n Full Complement Bearings side on door
n 1-1/2˝ Diameter Piston Arms Standard Arm and Track with Roller
n 11/16˝ Diameter Double Heat Treated Finishes/Colors/ n Aluminum (689)
n Pinion Journal
Powder Coat n Statuary Bronze (690)
n Light Bronze (691)
n Black (693)
Fluid All Weather Fluid n Dark Bronze (695)
n Brass (696)
Handing Non-Handed
n Custom colors optional
Size Adjustable Spring Size 1-4
n Optional SRI primer - powder coat only
Warranty 25 years

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
STANDARD (SINGLE)
TOP JAMB (PULL)
DELAYED ACTION
HINGE (PULL) SIDE TOP JAMB (PUSH) STOP FACE POWDER COAT PLASTIC METAL NON-HANDED ACCESSIBILITY AVB REGULAR (DOUBLE) HOLD-OPEN FUSIBLE LINK CUSH/HCUSH DOUBLE EGRESS
SCUSH/SHCUSH
PARALLEL ARM
NON-SIZED
EDA/HEDA
PLATED
180° 180° 95°
Closer available with less than 5.0 lbs. opening force on 36˝ door (pull side and top jamb only).
AVAILABLE * Maximum opening/hold-open point with standard template.
NOT AVAILABLE
