4050T
Series

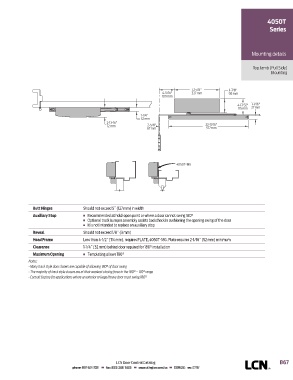

Mounting details

Top Jamb (Pull Side)

Mounting

12-7/8" 3-7/8"
4-5/16" 327 mm 98 mm
109 mm
4-17/32" 1-1/16"
115 mm 27 mm
1-1/4"
32 mm
2-13-16"
72 mm 2-5/8" 22-11/16"
67 mm 577 mm

4050T-18G

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop n Recommended at hold-open point or where a door cannot swing 180°
n Optional track bumper assembly assists backcheck in cushioning the opening swing of the door
n It is not intended to replace an auxiliary stop
Reveal Should not exceed 1/8˝ (3 mm)
Head Frame Less than 4-1/2˝ (114 mm), requires PLATE, 4050T-18G. Plate requires 2-1/16˝ (52 mm) minimum
Clearance 1-1/4˝ (32 mm) behind door required for 180° installation
Maximum Opening n Templating allows 180°
Notes:
• Many track style door closers are capable of allowing 180° of door swing
• The majority of track style closers are at their weakest closing force in the 180° – 130° range
• Consult factory for applications where an exterior or large/heavy door must swing 180°

LCN Door Control Catalog B67
