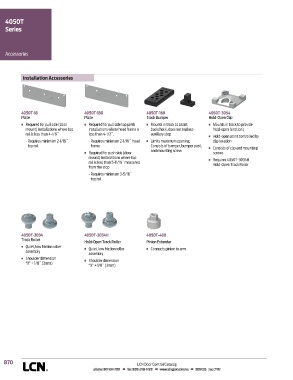

4050T
Series

Accessories

Installation Accessories

4050T-18 4050T-18G 4050T-169 4050T-3054
Plate Plate Track Bumper Hold-Open Clip
n Required for pull side (door n Required for pull side top jamb n Mounts in track to assist n Mounts in track to provide
mount) installations where top installations where head frame is backcheck, does not replace hold-open function)
rail is less than 4-1/8˝ less than 4-1/2˝. auxiliary stop
n Hold-open point controlled by
- Requires minimum 2-1/16˝ - Requires minimum 2-1/16˝ head n Limits maximum opening. clip location
top rail frame Consists of bumper, bumper post, n Consists of clip and mounting
n Required for push side (door and mounting screw screws
mount) installations where top n Requires 4050T-3034H
rail is less than 5-11/16˝ measured Hold-Open Track Roller
from the stop
- Requires minimum 3-5/16˝
top rail

4050T-3034 4050T-3034H 4050T-480
Track Roller Hold-Open Track Roller Pinion Extender
n Quiet, low friction roller n Quiet, low friction roller n Connects pinion to arm
assembly
assembly
n Shoulder dimension n Shoulder dimension
“X” = 1/8˝ (3mm) “X” = 1/8˝ (3mm)

B70 LCN Door Control Catalog
