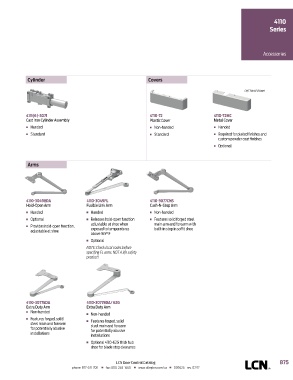

4110
Series

Accessories

Cylinder Covers

Left hand shown

4111(6)-3071 4110-72 4110-72MC
Cast Iron Cylinder Assembly Plastic Cover Metal Cover
n Handed n Non-handed n Handed
n Standard n Standard n Required for plated finishes and
custom powder coat finishes
n Optional

Arms

4110-3049EDA 4110-3049FL 4110-3077CNS
Hold-Open Arm Fusible Link Arm Cush-N-Stop Arm
n Handed n Handed n Non-handed
n Optional n Releases hold-open function n Features solid forged steel
n Provides hold-open function, adjustable at shoe when main arm and forearm with
adjustable at shoe exposed to temperatures built-in stop in soffit shoe
above 165° F
n Optional
NOTE: Check local codes before
specifing FL arms. NOT A life safety
product!

4110-3077EDA 4110-3077EDA/ 62G
Extra Duty Arm Extra Duty Arm
n Non-handed
n Non-handed
n Features forged, solid n Features forged, solid
steel main and forearm steel main and forearm
for potentially abusive for potentially abusive
installations
installations
n Optional 4110-62G thick hub
shoe for blade stop clearance

LCN Door Control Catalog B75
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
