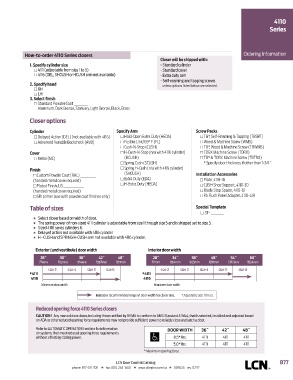

4110
Series

How-to-order 4110 Series closers Ordering Information
Closer will be shipped with:
1. Specify cylinder size - Standard cylinder
4111 (adjustable from size 1 to 5) - Standard cover
4116 (DEL, SHCUSH or HCUSH arm not available) - Extra duty arm
- Self-reaming and tapping screws
2. Specify hand unless options listed below are selected.
RH
LH
3. Select finish
Standard Powder Coat __________
Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass
Closer options

Cylinder Specify Arm Screw Packs
Delayed Action (DEL) (not available with 4116) Hold-Open Extra Duty (HEDA) TB*, Self-Reaming & Tapping (TBSRT)
Advanced Variable Backcheck (AVB) Fusible Link,165° F (FL) Wood & Machine Screw (WMS)
Cush-N-Stop (CUSH) TB*, Wood & Machine Screw (TBWMS)
Cover H-Cush-N-Stop (n/a with 4116 cylinder) TORX Machine Screw (TORX)
Metal (MC) (HCUSH) TB* & TORX Machine Screw (TBTRX)
Spring Cush (SCUSH) * Specify door thickness if other than 1-3/4˝.
Finish Spring H-Cush (n/a with 4116 cylinder)
Custom Powder Coat (RAL) ___________ (SHCUSH) Installation Accessories
(handed metal cover required) Extra Duty (EDA) Plate, 4110-18
Plated Finish, US ______________ H-Extra Duty (HEDA) CUSH Shoe Support, 4110-30
(handed metal cover required) Blade Stop Spacer, 4110-61
SRI primer (use with powder coat finishes only) PA Flush Panel Adapter, 4110-419

Table of sizes Special Template
ST- _________
n Select closer based on width of door.
n The spring power of non-sized 4111 cylinder is adjustable from size 1 through size 5 and is shipped set to size 3.
n Sized 4116 series cylinders 6.
n Delayed action not available with 4116 cylinder
n H - CUSH and SPRING H-CUSH arm not available with 4116 cylinder.

Exterior (and vestibule) door width Interior door width
28˝ 30˝ 36˝ 42˝ 48˝ 28˝ 34˝ 38˝ 48˝ 54˝ 60˝
711mm 762mm 914mm 1067mm 1219mm 711mm 864mm 965mm 1219mm 1372mm 1524mm
size 3 size 4 size 5 size 6 size 2 size 3 size 4 size 5 size 6
*4111 *4111
4116 4116
Minimum door width Minimum door width
Indicates recommended range of door width for closer size. * Adjustable Size 1 thru 5.

Reduced opening force 4110 Series closers
CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based
on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
Refer to AUTOMATIC OPERATORS section for information DOOR WIDTH 36˝ 42˝ 48˝
on systems that meet reduced opening force requirements
without effecting closing power. 8.5* lbs. 4111 4111 4111
5.0* lbs. 4111 4111 4111
* Maximum opening force.

LCN Door Control Catalog B77
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
