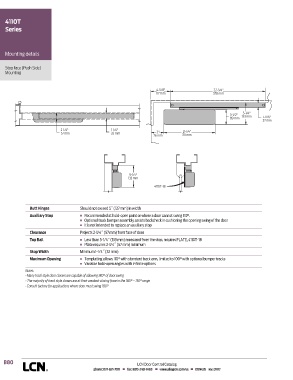

4110T
Series

Mounting details

Stop face (Push Side)
Mounting

4-5/8" 22-3/4"
117 mm 578 mm

5-1/4"
3-1/2" 133 mm
89 mm 1-1/16"
27 mm
2-1/4" 1-1/4" 12-1/4"
57 mm 32 mm 3"
76 mm 311 mm

5-1/4"
133 mm
4110T-18

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop n Recommended at hold-open point or where a door cannot swing 110°.
n Optional track bumper assembly assists backcheck in cushioning the opening swing of the door
n It is not intended to replace an auxiliary stop
Clearance Projects 2-1/4˝ (57 mm) from face of door
Top Rail n Less than 5-1/4˝ (133 mm) measured from the stop, requires PLATE, 4110T-18
n Plate requires 2-1/4˝ (57 mm) minimum
Stop Width Minimum 1-1/4˝ (32 mm)
Maximum Opening n Templating allows 110° with standard track arm, limited to 100° with optional bumper tracks
n Variable hold-open angles with infinite options
Notes:
• Many track style door closers are capable of allowing 180° of door swing
• The majority of track style closers are at their weakest closing force in the 180° – 130° range
• Consult factory for applications where door must swing 180°

B80 LCN Door Control Catalog
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17 phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
