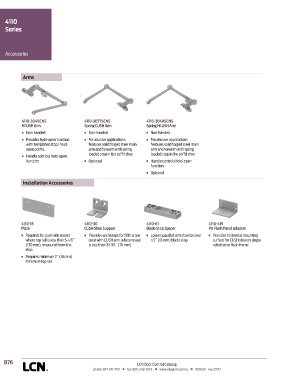

Page 108 - Herrajes Patricios - Catalogo LCN

4110
Series

Accessories

Arms

4110-3049CNS 4110-3077SCNS 4110-3049SCNS
HCUSH Arm Spring CUSH Arm Spring HCUSH Arm
n Non-handed n Non-handed n Non-handed
n Provides hold-open function n For abusive applications n For abusive applications
with templated stop/ hold- features solid forged steel main features solid forged steel main
open points. arm and forearm with spring arm and forearm with spring
n Handle controls hold-open loaded stop in the soffit shoe loaded stop in the soffit shoe
function n Optional n Handle controls hold-open
function
n Optional

Installation Accessories

4110-18 4110-30 4110-61 4110-419
Plate CUSH Shoe Support Blade Stop Spacer PA Flush Panel Adapter
n Required for push side mount n Provides anchorage for fifth screw n Lowers parallel arm shoe to clear n Provides horizontal mounting
where top rail is less than 5-1/8˝ used with CUSH arm, where reveal 1/2˝ (13 mm) blade stop surface for CUSH shoe on single
(130 mm), measured from the is less than 3-1/16˝ (78 mm) rabetted or flush frame
stop
n Requires minimum 2˝ (51 mm)
minimum top rail

B76 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
