4050T
Series

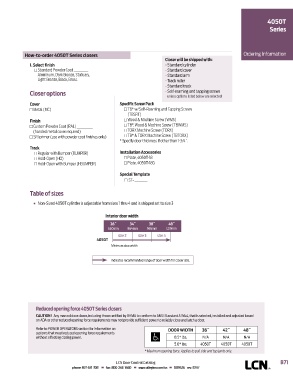

How-to-order 4050T Series closers Ordering Information
Closer will be shipped with:
1. Select finish - Standard cylinder
Standard Powder Coat __________ - Standard cover
Aluminum, Dark Bronze, Statuary, - Standard arm
Light Bronze, Black, Brass. - Track roller
- Standard track
Closer options - Self-reaming and tapping screws
unless options listed below are selected.
Cover Specific Screw Pack
Metal (MC) TB* w/Self-Reaming and Tapping Screws
(TBSRT)
Finish Wood & Machine Screw (WMS)
Custom Powder Coat (RAL) ___________ TB*, Wood & Machine Screw (TBWMS)
(handed metal cover required) TORX Machine Screw (TORX)
SRI primer (use with powder coat finishes only) TB* & TORX Machine Screw (TBTORX)
* Specify door thickness if other than 1-3/4˝.
Track
Regular with Bumper (BUMPER) Installation Accessories
Hold-Open (HO) Plate, 4050T-18
Hold-Open with Bumper (HBUMPER) Plate, 4050T-18G

Special Template
ST- _________

Table of sizes

n Non-Sized 4050T cylinder is adjustable from sizes 1 thru 4 and is shipped set to size 3

Interior door width
26˝ 34˝ 38˝ 48˝
660mm 864mm 965mm 1219mm
size 2 size 3 size 4
4050T
Minimum door width

Indicates recommended range of door width for closer size.

Reduced opening force 4050T Series closers
CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based
on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
Refer to POWER OPERATORS section for information on DOOR WIDTH 36˝ 42˝ 48˝
systems that meet reduced opening force requirements
without effecting closing power. 8.5* lbs. N/A N/A N/A
5.0* lbs. 4050T 4050T 4050T
* Maximum opening force. Applies to pull side and top jamb only.

LCN Door Control Catalog
LCN Door Control Catalog B71
