4050T
Series

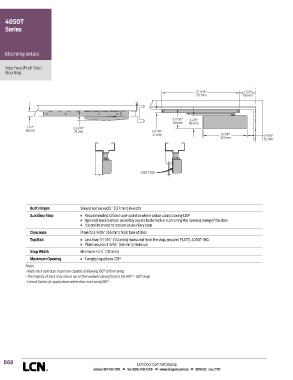

Mounting details

Stop Face (Push Side)
Mounting

22-11/16" 4-5/8"
577 mm 118 mm

5-11/16" 3-7/8"
145 mm 98 mm
1-1/2" 2-13/16"
38 mm 72 mm 1-11/16"
27 mm 12-7/8" 2-7/16"
327 mm 62 mm

4050T-18G

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop n Recommended at hold-open point or where a door cannot swing 120°
n Optional track bumper assembly assists backcheck in cushioning the opening swing of the door
n It is not intended to replace an auxiliary stop
Clearance Projects 2-9/16˝ (65 mm) from face of door
Top Rail n Less than 5-11/16˝ (144 mm) measured from the stop, requires PLATE, 4050T-18G
n Plate requires 3-5/16˝ (84 mm) minimum
Stop Width Minimum 1-1/4˝ (32 mm)
Maximum Opening n Templating allows 120°
Notes:
• Many track style door closers are capable of allowing 180° of door swing
• The majority of track style closers are at their weakest closing force in the 180° – 130° range
• Consult factory for applications where door must swing 180°

B68 LCN Door Control Catalog
