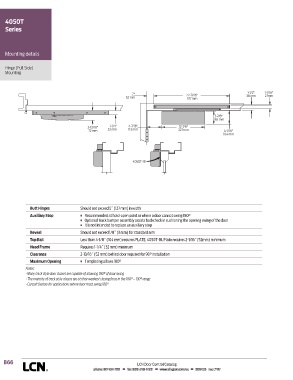

4050T
Series

Mounting details

Hinge (Pull Side)
Mounting

2" 22-11/16" 1-1/2" 1-1/16"
52 mm 577 mm 38 mm 27mm

3-7/8"
98 mm
2-13/16" 1-1/4" 4-7/16" 12-7/8"
72 mm 32 mm 113 mm 327 mm 4-1/16"
104 mm

4050T-18

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop n Recommended at hold-open point or where a door cannot swing 180°
n Optional track bumper assembly assists backcheck in cushioning the opening swing of the door
n It is not intended to replace an auxiliary stop
Reveal Should not exceed 1/8˝ (3 mm) for standard arm
Top Rail Less than 4-1/8˝ (104 mm) requires PLATE, 4050T-18. Plate requires 2-1/16˝ (52mm) minimum
Head Frame Requires 1-1/4˝ (32 mm) minimum
Clearance 2-13/16˝ (52 mm) behind door required for 90° installation
Maximum Opening n Templating allows 180°
Notes:
• Many track style door closers are capable of allowing 180° of door swing
• The majority of track style closers are at their weakest closing force in the 180° – 130° range
• Consult factory for applications where door must swing 180°
