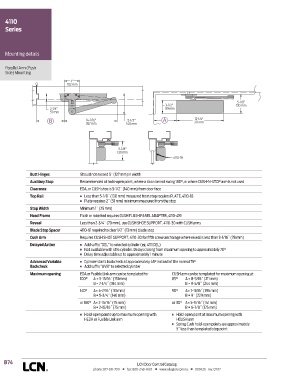

4110
Series

Mounting details

Parallel Arm (Push
Side) Mounting

4"
102 mm

5-1/8”
3-1/2" 130 mm
2-1/4" 89 mm
57 mm
12-1/4"
B 14-1/16" 5-1/2" A 311 mm
357 mm 140 mm

5-1/8"
130 mm
4110-18

C L
Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended at hold-open point, where a door cannot swing 180°, or where CUSH-N-STOP arm is not used
Clearance EDA, or CUSH shoe is 5-1/2˝ (140 mm) from door face
Top Rail n Less than 5-1/8˝ (130 mm) measured from stop requires PLATE, 4110-18
n Plate requires 2˝ (51 mm) minimum measured from the stop
Stop Width Minimum 1˝ (25 mm)
Head Frame Flush or rabetted requires CUSH FLUSH PANEL ADAPTER, 4110-419
Reveal Less than 2-3/4˝ (70 mm), use CUSH SHOE SUPPORT, 4110-30 with CUSH arms
Blade Stop Spacer 4110-61 required to clear 1/2˝ (13 mm) blade stop
Cush Arm Requires CUSH SHOE SUPPORT, 4110-30 for fifth screw anchorage where reveal is less than 3-1/16˝ (78 mm)
Delayed Action n Add suffix “DEL” to selected cylinder (eg. 4111 DEL)
n Not available with 4116 cylinder. Delays closing from maximum opening to approximately 70°
n Delay time adjustable up to approximately 1 minute
Advanced Variable n Cylinder starts backcheck at approximately 45° instead of the normal 75°
Backcheck n Add suffix “AVB” to selected cylinder
Maximum opening EDA or Fusible Link arm can be templated for CUSH arm can be templated for maximum opening at
100° A = 5-15/16˝ (151 mm) 85° A = 8-5/16˝ (211 mm)
B = 7-1/4˝ (184 mm) B = 9-5/8˝ (244 mm)
140° A= 4-7/16˝ (113 mm) 90° A= 7-11/16˝ (195 mm)
B = 5-3/4˝ (146 mm) B = 9˝ (229 mm)
or 180° A= 2-15/16˝ (75 mm) or 110° A= 5-9/16˝ (141 mm)
B = 2-15/16˝ (75 mm) B = 6-7/8˝ (175 mm)
n Hold-open points up to maximum opening with n Hold-open point at maximum opening with
HEDA or Fusible Link arm HCUSH arm
n Spring Cush hold-open points are approximately
5˚ less than templated stop point
