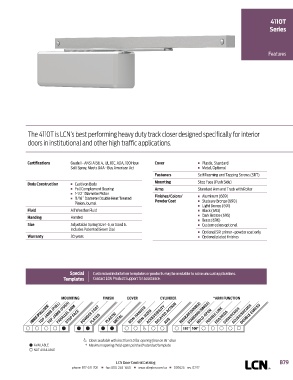

4110T
Series

Features

The 4110T is LCN’s best performing heavy duty track closer designed specifically for interior
doors in institutional and other high traffic applications.

Certifications Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Cover n Plastic, Standard
Salt Spray, Meets BAA - Buy American Act n Metal, Optional
Fasteners Self Reaming and Tapping Screws (SRT)
Body Construction n Cast Iron Body Mounting Stop Face (Push Side)
n Full Complement Bearing Arms Standard Arm and Track with Roller
n 1-1/2˝ Diameter Piston
n 11/16˝ Diameter Double Heat Treated Finishes/Colors/ n Aluminum (689)
Pinion Journal Powder Coat n Statuary Bronze (690)
n Light Bronze (691)
Fluid All Weather Fluid n Black (693)
n Dark Bronze (695)
Handing Handed
n Brass (696)
Size Adjustable Spring Size 1-5, or Sized 6. n Custom colors optional
Includes Patented Green Dial
n Optional SRI primer - powder coat only
Warranty 30 years n Optional plated finishes

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
STANDARD (SINGLE)
TOP JAMB (PULL)
DELAYED ACTION
SCUSH/SHCUSH
PARALLEL ARM
HINGE (PULL) SIDE TOP JAMB (PUSH) STOP FACE POWDER COAT PLASTIC METAL NON-HANDED ACCESSIBILITY AVB REGULAR (DOUBLE) HOLD-OPEN FUSIBLE LINK CUSH/HCUSH DOUBLE EGRESS
NON-SIZED
EDA/HEDA
PLATED
110° 100°
Closer available with less than 5.0 lbs. opening force on 36˝ door.
AVAILABLE * Maximum opening/hold-open point with standard template.
NOT AVAILABLE

LCN Door Control Catalog B79
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
