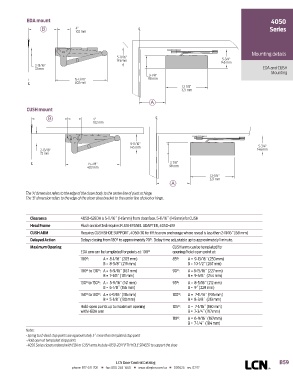

EDA mount 4050
B 4” C L Series
102 mm

Mounting details
5-11/16” 5-3/4”
145 mm 146 mm
2-13/16”
72 mm EDA and CUSH
Mounting
3-7/8”
15-13/16” 98 mm
C L 402 mm
12-7/8”
327 mm

A
CUSH mount
B 4” C L
102 mm

5-11/16”
145 mm 5-3/4”
2-13/16” 146 mm
72 mm
C L 15-7/8” 3-7/8”
403 mm 98 mm
12-7/8”
327 mm
A

The 'A' dimension refers to the edge of the closer body to the center line of pivot or hinge.
The 'B' dimension refers to the edge of the closer shoe bracket to the center line of pivot or hinge.

Clearance 4050-62EDA is 5-11/16˝ (145mm) from door face. 5-11/16˝ (145mm) for CUSH
Head Frame Flush or rabetted requires FLUSH PANEL ADAPTER, 4050-419
CUSH ARM Requires CUSH SHOE SUPPORT, 4050-30 for fifth screw anchorage where reveal is less than 2-11/16˝ (68 mm)
Delayed Action Delays closing from 180° to approximately 70°. Delay time adjustable up to approximately 1 minute.
Maximum Opening CUSH arms can be templated for
EDA arm can be templated for points at: 100° opening/hold-open point at:
100°: A = 8-1/16˝ (205 mm) 85°: A = 9-13/16˝ (250 mm)
B = 8-5/8˝ (219 mm) B = 10-1/2˝ (267 mm)
100° to 130°: A = 6-9/16˝ (167 mm) 90°: A = 8-15/16˝ (227 mm)
B = 7-1/8˝ (181 mm) B = 9-5/8˝ (244 mm)
130° to 150°: A = 5-9/16˝ (141 mm) 95°: A = 8-5/16˝ (212 mm)
B = 6-1/8˝ (156 mm) B = 9˝ (229 mm)
150° to 180°: A = 4-9/16˝ (116 mm) 100°: A = 7-11/16˝ (196 mm)
B = 5-1/8˝ (130 mm) B = 8-3/8˝ (213 mm)
Hold-open points up to maximum opening 105°: A = 7-1/16˝ (180 mm)
with HEDA arm B = 7-3/4˝ (197 mm)
110°: A = 6-9/16˝ (167 mm)
B = 7-1/4˝ (184 mm)
Notes:
• Spring Cush dead stop points are approximately 5˚ more than templated stop point
• Hold open at templated stop points
• 4050 Series closers ordered with EDA or CUSH arms include 4050-201 FIFTH HOLE SPACER to support the shoe

LCN Door Control Catalog B59
