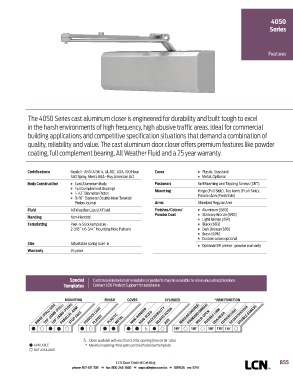

4050
Series

Features

The 4050 Series cast aluminum closer is engineered for durability and built tough to excel
in the harsh environments of high frequency, high abusive traffic areas. Ideal for commercial
building applications and competitive specification situations that demand a combination of
quality, reliability and value. The cast aluminum door closer offers premium features like powder

coating, full complement bearing, All Weather Fluid and a 25 year warranty.

Certifications Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Cover n Plastic, Standard
Salt Spray, Meets BAA - Buy American Act n Metal, Optional
Body Construction n Cast Aluminum Body Fasteners Self Reaming and Tapping Screws (SRT)
n Full Complement Bearings Mounting Hinge (Pull Side), Top Jamb (Push Side),
n 1-1/2˝ Diameter Piston Parallel Arm (Push Side)
n 11/16˝ Diameter Double Heat Treated
Pinion Journal Arms Standard Regular Arm
Fluid All Weather Liquid X Fluid Finishes/Colors/ n Aluminum (689)
Powder Coat n Statuary Bronze (690)
Handing Non-Handed n Light Bronze (691)
Templating Peel-n-Stick templates - n Black (693)
2-3/8˝ x 6-3/4˝ Mounting Hole Pattern n Dark Bronze (695)
n Brass (696)
n Custom colors optional
Size Adjustable spring size 1-6
n Optional SRI primer - powder coat only
Warranty 25 years

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
HINGE (PULL) SIDE TOP JAMB (PUSH) STOP FACE POWDER COAT PLASTIC METAL NON-HANDED ACCESSIBILITY REGULAR (DOUBLE) HOLD-OPEN FUSIBLE LINK CUSH/HCUSH DOUBLE EGRESS
STANDARD (SINGLE)
TOP JAMB (PULL)
SCUSH/SHCUSH
PARALLEL ARM
DELAYED ACTION
NON-SIZED
EDA/HEDA
PLATED
AVB
180° 180° 180° 110° 110°
Closer available with less than 5.0 lbs. opening force on 36˝ door.
AVAILABLE * Maximum opening/hold-open point with standard template.
NOT AVAILABLE
LCN Door Control Catalog
LCN Door Control Catalog B55
