4040XPT
Series

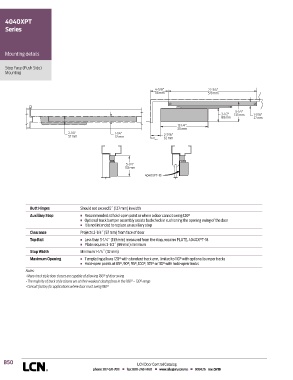

Mounting details

Stop Face (Push Side)
Mounting

4-5/8" 22-3/4"
118 mm 578 mm

5-1/4"
3-1/2" 133 mm 1-1/16"
89 mm 27 mm
12-1/4"
311 mm
2-1/4" 1-1/4"
57 mm 32 mm 2-7/16"
62 mm

5-1/4"
133 mm
4040XPT-18

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop n Recommended at hold-open point or where a door cannot swing 120°
n Optional track bumper assembly assists backcheck in cushioning the opening swing of the door
n It is not intended to replace an auxiliary stop
Clearance Projects 2-1/4˝ (57 mm) from face of door
Top Rail n Less than 5-1/4˝ (133 mm) measured from the stop, requires PLATE, 4040XPT-18
n Plate requires 3-1/2˝ (89 mm) minimum
Stop Width Minimum 1-1/4˝ (32 mm)
Maximum Opening n Templating allows 120° with standard track arm, limited to 110° with optional bumper tracks
n Hold-open points at 85°, 90°, 95°, 100°, 105° or 110° with hold-open tracks
Notes:
• Many track style door closers are capable of allowing 180° of door swing
• The majority of track style closers are at their weakest closing force in the 180° – 130° range
• Consult factory for applications where door must swing 180°

B50 LCN Door Control Catalog
