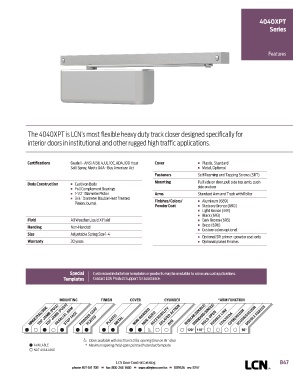

4040XPT
Series

Features

The 4040XPT is LCN’s most flexible heavy duty track closer designed specifically for
interior doors in institutional and other rugged high traffic applications.

Certifications Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Cover n Plastic, Standard
Salt Spray, Meets BAA - Buy American Act n Metal, Optional
Fasteners Self Reaming and Tapping Screws (SRT)
Body Construction n Cast Iron Body Mounting Pull side on door, pull side top jamb, push
n Full Complement Bearings side on door
n 1-1/2˝ Diameter Piston Arms Standard Arm and Track with Roller
n 3/4˝ Diameter Double Heat Treated
Pinion Journal Finishes/Colors/ n Aluminum (689)
Powder Coat n Statuary Bronze (690)
n Light Bronze (691)
n Black (693)
Fluid All Weather Liquid X Fluid n Dark Bronze (695)
n Brass (696)
Handing Non-Handed
n Custom colors optional
Size Adjustable Spring Size 1-4
n Optional SRI primer - powder coat only
Warranty 30 years n Optional plated finishes

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
STANDARD (SINGLE)
TOP JAMB (PULL)
DELAYED ACTION
HINGE (PULL) SIDE TOP JAMB (PUSH) STOP FACE POWDER COAT PLASTIC METAL NON-HANDED ACCESSIBILITY AVB REGULAR (DOUBLE) HOLD-OPEN FUSIBLE LINK CUSH/HCUSH DOUBLE EGRESS
SCUSH/SHCUSH
PARALLEL ARM
NON-SIZED
EDA/HEDA
PLATED
120° 110° 95°
Closer available with less than 5.0 lbs. opening force on 36˝ door.
AVAILABLE * Maximum opening/hold-open point with standard template.
NOT AVAILABLE
