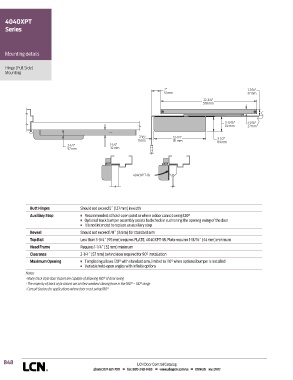

4040XPT
Series

Mounting details

Hinge (Pull Side)
Mounting

2" 1-7/16"
51 mm 37 mm
22-3/4"
578 mm

3-11/16" 1-1/16"
94 mm 27 mm

7/16" 12-1/4" 3-1/2"
11 mm 311 mm 89 mm
2-1/4" 1-1/4"
57 mm 32 mm

4040XPT-18

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop n Recommended at hold-open point or where a door cannot swing 120°
n Optional track bumper assembly assists backcheck in cushioning the opening swing of the door
n It is not intended to replace an auxiliary stop
Reveal Should not exceed 1/8˝ (3 mm) for standard arm
Top Rail Less than 3-3/4˝ (95 mm) requires PLATE, 4040XPT-18. Plate requires 1-13/16˝ (44 mm) minimum
Head Frame Requires 1-1/4˝ (32 mm) minimum
Clearance 2-1/4˝ (57 mm) behind door required for 90° installation
Maximum Opening n Templating allows 120° with standard arm, limited to 110° when optional bumper is installed
n Variable hold-open angles with infinite options
Notes:
• Many track style door closers are capable of allowing 180° of door swing
• The majority of track style closers are at their weakest closing force in the 180° – 130° range
• Consult factory for applications where door must swing 180°
