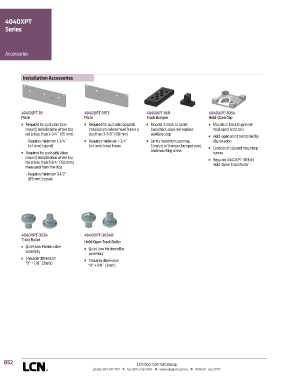

4040XPT
Series

Accessories

Installation Accessories

4040XPT-18 4040XPT-18TJ 4040XPT-169 4040XPT-3054
Plate Plate Track Bumper Hold-Open Clip
n Required for pull side (door n Required for pull side top jamb n Mounts in track to assist n Mounts in track to provide
mount) installations where top installations where head frame is backcheck, does not replace hold-open function)
rail is less than 3-3/4˝ (95 mm) less than 3-7/8˝ (98 mm) auxiliary stop
n Hold-open point controlled by
- Requires minimum 1-3/4˝ n Requires minimum 1-3/4˝ n Limits maximum opening. clip location
(44 mm) top rail (44 mm) head frame Consists of bumper, bumper post, n Consists of clip and mounting
n Required for push side (door and mounting screw screws
mount) installations where top n Requires 4040XPT-3034H
rail is less than 5-1/4˝ (133 mm) Hold-Open Track Roller
measured from the stop
- Requires minimum 3-1/2˝
(89 mm) top rail

4040XPT-3034 4040XPT-3034H
Track Roller Hold-Open Track Roller
n Quiet, low friction roller n Quiet, low friction roller
assembly
assembly
n Shoulder dimension n Shoulder dimension
“X” = 1/8˝ (3mm) “X” = 1/8˝ (3mm)

B52 LCN Door Control Catalog
