4050
Series

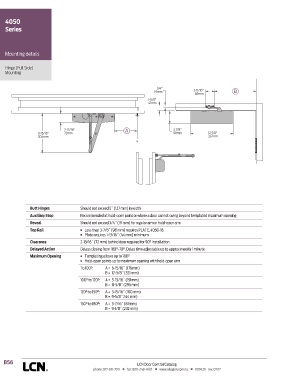

Mounting details

Hinge (Pull Side)
Mounting

3/4"
19mm 2-11/16" B
68mm
1-5/8"
41mm

2-13/16" A 3-7/8"
11-15/16" 72mm 98mm 12-7/8"
304mm 327mm
C L

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended at hold-open point or where a door cannot swing beyond templated maximum opening
Reveal Should not exceed 3/4˝ (19 mm) for regular arm or hold-open arm
Top Rail n Less than 3-7/8˝ (98 mm) requires PLATE, 4050-18.
n Plate requires 1-13/16˝ (44 mm) minimum
Clearance 2-13/16˝ (72 mm) behind door required for 90° installation
Delayed Action Delays closing from 180°-70°. Delay time adjustable up to approximately 1 minute
Maximum Opening n Templating allows up to 180°
n Hold-open points up to maximum opening with hold-open arm
To 100°: A = 6-15/16˝ (176mm)
B = 12-5/8˝ (321 mm)
100° to 120°: A = 5-15/16˝ (151mm)
B = 11-5/8˝ (295 mm)
120° to 150°: A = 3-15/16˝ (100 mm)
B = 9-5/8˝ 244 mm)
150° to 180°: A = 3-7/16˝ (87mm)
B = 9-1/8˝ (232 mm)

B56 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
