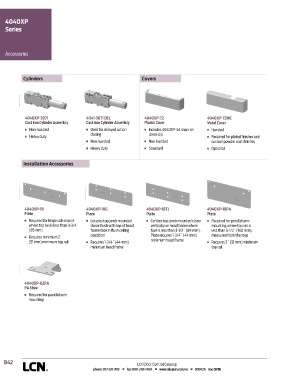

Page 74 - Herrajes Patricios - Catalogo LCN

4040XP
Series

Accessories

Cylinders Covers

4040XP-3071 4041-3071 DEL 4040XP-72 4040XP-72MC
Cast Iron Cylinder Assembly Cast Iron Cylinder Assembly Plastic Cover Metal Cover
n Non-handed n Used for delayed action n Includes 4040XP-54 snap-on n Handed
n Heavy duty closing cover clip n Required for plated finishes and
n Non-handed n Non-handed custom powder coat finishes
n Heavy duty n Standard n Optional

Installation Accessories

4040XP-18 4040XP-18G 4040XP-18TJ 4040XP-18PA
Plate Plate Plate Plate
n Required for hinge side mount n Locates top jamb mounted n Centers top jamb mounted closer n Required for parallel arm
where top rail is less than 3-3/4˝ closer flush with top of head vertically on head frame where mounting where top rail is
(95 mm) frame face in flush ceiling face is less than 3-1/2˝ (89 mm). less than 5-1/2˝ (140 mm),
n Requires minimum 2˝ condition Plate requires 1-3/4˝ (44 mm) measured from the stop
(51 mm) minimum top rail n Requires 1-3/4˝ (44 mm) minimum head frame n Requires 2˝ (51 mm) minimum
minimum head frame top rail

4040XP-62PA
PA Shoe
n Required for parallel arm
mounting
