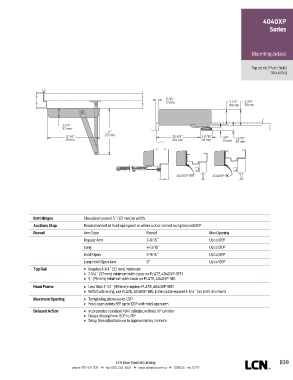

Page 71 - Herrajes Patricios - Catalogo LCN

4040XP
Series

Mounting details

Top Jamb (Push Side)
Mounting

11/16"
17 mm 3-1/2" 3-3/4"
89 mm 95 mm

2-1/4"
57 mm
11"
12-1/4" 279 mm 10-3/8" 2-11/16" 3/4"
311 mm 264 mm 68 mm 19 mm 1-3/16"
30 mm

4040XP-18TJ 4040XP-18G

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended at hold-open point or where a door cannot swing beyond 120°
Reveal Arm Type Reveal Max Opening
Regular Arm 2-9/16˝ Up to 120°
Long 4-13/16˝ Up to 120°
Hold-Open 2-9/16˝ Up to 120°
Long Hold-Open Arm 8˝ Up to 120°
Top Rail n Requires 1-1/4˝ (32 mm) minimum
n 2-1/4˝ (57 mm) minimum with closer on PLATE, 4040XP-18TJ
n 3˝ (76 mm) minimum with closer on PLATE, 4040XP-18G
Head Frame n Less than 3-1/2˝ (89 mm) requires PLATE, 4040XP-18TJ
n With flush ceiling, use PLATE, 4040XP-18G. Either plate requires 1-3/4˝ (44 mm) minimum
Maximum Opening n Templating allows up to 120°.
n Hold-open points 85° up to 120° with hold-open arm.
Delayed Action n Incorporates standard 4041 cylinder, without XP cylinder
n Delays closing from 120° to 70°
n Delay time adjustable up to approximately 1 minute
