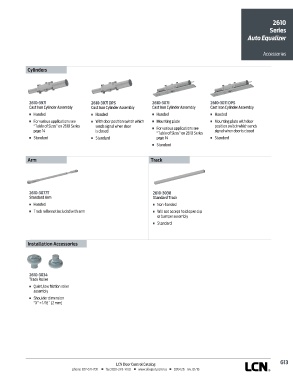

Page 277 - Herrajes Patricios - Catalogo LCN

2610
Series
Auto Equalizer

Accessories

Cylinders

2610-3971 2610-3971 DPS 2610-3071 2610-3071 DPS
Cast Iron Cylinder Assembly Cast Iron Cylinder Assembly Cast Iron Cylinder Assembly Cast Iron Cylinder Assembly
n Handed n Handed n Handed n Handed
n For various applications see n With door position switch which n Mounting plate n Mounting plate with door
“Table of Sizes” on 2610 Series sends signal when door n For various applications see position switch which sends
page 14 is closed “Table of Sizes” on 2610 Series signal when door is closed
n Standard n Standard page 14 n Standard
n Standard

Arm Track

2610-3077T 2610-3038
Standard Arm Standard Track
n Handed n Non-handed
n Track roller not included with arm n Will not accept hold open clip
or bumper assembly
n Standard

Installation Accessories

2610-3034
Track Roller
n Quiet, low friction roller
assembly
n Shoulder dimension
“X” = 1/16˝ (2 mm)

G13
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
