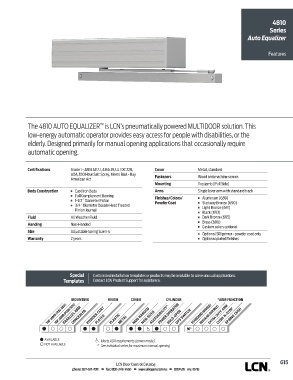

4810
Series
Auto Equalizer

Features

™
The 4810 AUTO EQUALIZER is LCN’s pneumatically powered MULTIDOOR solution. This
low-energy automatic operator provides easy access for people with disabilities, or the
elderly. Designed primarily for manual opening applications that occasionally require
automatic opening.

Certifications Grade 1 - ANSI A117.1, A156.19, UL 10C 228, Cover Metal, standard
ADA, 100 Hour Salt Spray, Meets BAA - Buy Fasteners Wood and machine screws
American Act
Mounting Top jamb (Pull Side)
Body Construction n Cast Iron Body Arms Single lever arm with standard track
n Full Complement Bearing Finishes/Colors/ n Aluminum (689)
n 1-1/2˝ Diameter Piston Powder Coat n Statuary Bronze (690)
n 3/4˝ Diameter Double Heat Treated n Light Bronze (691)
Pinion Journal
n Black (693)
Fluid All Weather Fluid n Dark Bronze (695)
n Brass (696)
Handing Non-Handed
n Custom colors optional
Size Adjustable Spring Size 1-4
n Optional SRI primer - powder coat only
Warranty 2 years n Optional plated finishes
Interior door width
30˝ 38˝ 48˝
762mm 965mm 1219mm

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
POWER OPERATOR
TOP JAMB (PUSH SIDE)
TOP JAMB (PULL SIDE) PARALLEL ARM POWDER COAT PLASTIC METAL NON-HANDED ACCESSIBILITY* HOLD-OPEN DPS SWITCH STANDARD (SINGLE) EXTRA DUTY ARM SPRING CUSH
REGULAR (DOUBLE)
CUSH-N-STOP
CONCEALED
NON-SIZED
PLATED
AVAILABLE Meets ADA requirements (power mode).
NOT AVAILABLE * See individual series for maximum manual opening.

G15
