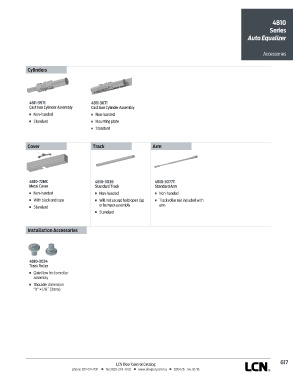

4810
Series
Auto Equalizer

Accessories

Cylinders

4811-3971 4811-3071
Cast Iron Cylinder Assembly Cast Iron Cylinder Assembly
n Non-handed n Non-handed
n Standard n Mounting plate
n Standard

Cover Track Arm

4810-72MC 4810-3038 4810-3077T
Metal Cover Standard Track Standard Arm
n Non-handed n Non-handed n Non-handed
n With black end caps n Will not accept hold open clip n Track roller not included with
n Standard or bumper assembly arm
n Standard

Installation Accessories

4810-3034
Track Roller
n Quiet low friction roller
assembly
n Shoulder dimension
“X” = 1/8˝ (3mm)

G17
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
