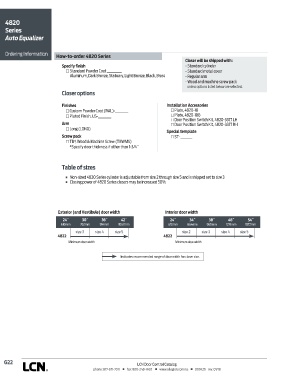

4820
Series
Auto Equalizer

Ordering Information How-to-order 4820 Series
Closer will be shipped with:
Specify finish - Standard cylinder
Standard Powder Coat __________ - Standard metal cover
Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass - Regular arm
- Wood and machine screw pack
unless options listed below are selected.
Closer options

Finishes Installation Accessories
Custom Powder Coat (RAL)-_________ Plate, 4820-18
Plated Finish, US-_________ Plate, 4820-18G
Door Position Switch Kit, 4820-3377 LH
Arm Door Position Switch Kit, 4820-3377 RH
Long (LONG)
Special template
Screw pack ST- ________
TB*, Wood & Machine Screw (TBWMS)
*Specify door thickness if other than 1-3/4˝

Table of sizes

n Non-sized 4820 Series cylinder is adjustable from size 2 through size 5 and is shipped set to size 3
n Closing power of 4820 Series closers may be increased 50%

Exterior (and Vestibule) door width Interior door width
24˝ 30˝ 36˝ 42˝ 24˝ 34˝ 38˝ 48˝ 54˝
610mm 762mm 914mm 1067mm 610mm 864mm 965mm 1219mm 1372mm
size 3 size 4 size 5 size 2 size 3 size 4 size 5
4822 4822
Minimum door width Minimum door width

Indicates recommended range of door width for closer size.

G22 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
