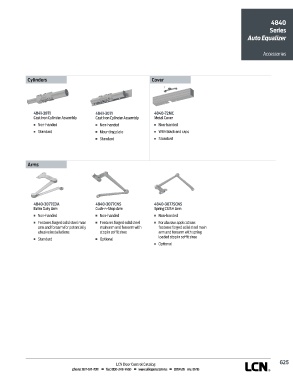

4840
Series
Auto Equalizer

Accessories

Cylinders Cover

4841-3971 4841-3071 4840-72MC
Cast Iron Cylinder Assembly Cast Iron Cylinder Assembly Metal Cover
n Non-handed n Non-handed n Non-handed
n Standard n Mounting plate n With black end caps
n Standard n Standard

Arms

4840-3077EDA 4840-3077CNS 4840-3077SCNS
Extra Duty Arm Cush-n-Stop Arm Spring CUSH Arm
n Non-handed n Non-handed n Non-handed
n Features forged solid steel main n Features forged solid steel n For abusive applications
arm and forearm for potentially main arm and forearm with features forged solid steel main
abusive installations stop in soffit shoe arm and forearm with spring
n Standard n Optional loaded stop in soffit shoe
n Optional

G25
LCN Door Control Catalog
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18 phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
