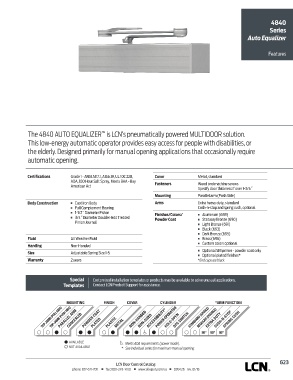

4840
Series
Auto Equalizer

Features

The 4840 AUTO EQUALIZER is LCN’s pneumatically powered MULTIDOOR solution.
™
This low-energy automatic operator provides easy access for people with disabilities, or
the elderly. Designed primarily for manual opening applications that occasionally require

automatic opening.

Certifications Grade 1 - ANSI A117.1, A156.19, UL 10C 228, Cover Metal, standard
ADA, 100 Hour Salt Spray, Meets BAA - Buy Fasteners Wood and machine screws
American Act
Specify door thickness if over 1-3/4˝
Mounting Parallel arm (Push Side)
Body Construction n Cast Iron Body Arms Extra heavy duty, standard
n Full Complement Bearing Cush-n-stop and spring cush, optional
n 1-1/2˝ Diameter Piston Finishes/Colors/ n Aluminum (689)
n 3/4˝ Diameter Double Heat Treated Powder Coat n Statuary Bronze (690)
Pinion Journal n Light Bronze (691)
n Black (693)
n Dark Bronze (695)
Fluid All Weather Fluid n Brass (696)
n Custom colors optional
Handing Non-Handed
n Optional SRI primer - powder coat only
Size Adjustable Spring Size 1-5
n Optional plated finishes*
Warranty 2 years *End caps are black

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
POWER OPERATOR
TOP JAMB (PUSH SIDE)
TOP JAMB (PULL SIDE) PARALLEL ARM POWDER COAT PLASTIC METAL NON-HANDED ACCESSIBILITY* HOLD-OPEN DPS SWITCH STANDARD (SINGLE) EXTRA DUTY SPRING CUSH
REGULAR (DOUBLE)
CUSH-N-STOP
CONCEALED
NON-SIZED
PLATED
AVAILABLE Meets ADA requirements (power mode).
NOT AVAILABLE * See individual series for maximum manual opening.

G23
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
