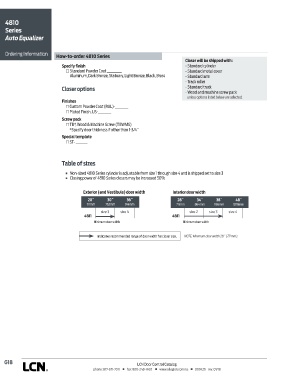

Page 282 - Herrajes Patricios - Catalogo LCN

4810
Series
Auto Equalizer

Ordering Information How-to-order 4810 Series
Closer will be shipped with:
Specify finish - Standard cylinder
Standard Powder Coat __________ - Standard metal cover
Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass - Standard arm
- Track roller
Closer options - Standard track
- Wood and machine screw pack
unless options listed below are selected.
Finishes
Custom Powder Coat (RAL)-_________
Plated Finish, US-_________
Screw pack
TB*, Wood & Machine Screw (TBWMS)
*Specify door thickness if other than 1-3/4˝
Special template
ST- ________

Table of sizes
n Non-sized 4810 Series cylinder is adjustable from size 1 through size 4 and is shipped set to size 3
n Closing power of 4810 Series closers may be increased 50%

Exterior (and Vestibule) door width Interior door width

28˝ 30˝ 36˝ 28˝ 34˝ 38˝ 48˝
711mm 762mm 914mm 711mm 864mm 965mm 1219mm
size 3 size 4 size 2 size 3 size 4
4811 4811
Minimum door width Minimum door width

Indicates recommended range of door width for closer size. NOTE: Minimum door width 28˝ (711 mm).

G18 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
