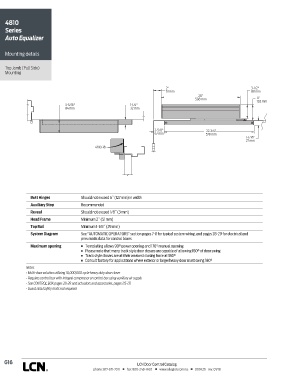

4810
Series
Auto Equalizer

Mounting details

Top Jamb (Pull Side)
Mounting

2" 3-1/2"
51 mm 89 mm
20"
508 mm 4"
102 mm
3-5/16" 1-1/4"
84 mm 32 mm

2-5/8" 22-3/4"
67 mm 578 mm
1-1/16"
27 mm
4810-18

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended
Reveal Should not exceed 1/8˝ (3 mm)
Head Frame Minimum 2˝ (51 mm)
Top Rail Minimum 1-1/8˝ (29 mm)
System Diagram See “AUTOMATIC OPERATORS” section pages 7-8 for typical system wiring, and pages 28-29 for electrical and
pneumatic data for control boxes
Maximum opening n Templating allows 90° power opening and 170° manual opening
n Please note that many track style door closers are capable of allowing 180° of door swing
n Track style closers are at their weakest closing force at 180°
n Consult factory for applications where exterior or large/heavy door must swing 180°
Notes:
• Multi-door solution utilizing 10,000,000 cycle heavy duty door closer
• Requires control box with integral compressor or control box using auxiliary air supply
• See CONTROL BOX pages 28-29 and actuators and accessories, pages 115-131
• Guard rails/safety mats not required

G16 LCN Door Control Catalog
