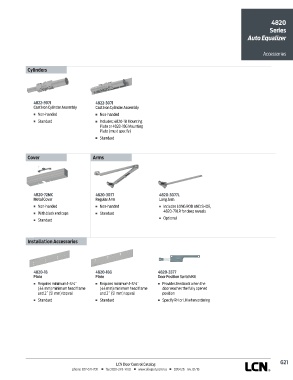

Page 285 - Herrajes Patricios - Catalogo LCN

4820
Series
Auto Equalizer

Accessories

Cylinders

4822-3971 4822-3071
Cast Iron Cylinder Assembly Cast Iron Cylinder Assembly
n Non-handed n Non-handed
n Standard n Includes; 4820-18 Mounting
Plate or 4820-18G Mounting
Plate (must specify)
n Standard

Cover Arms

4820-72MC 4820-3077 4820-3077L
Metal Cover Regular Arm Long Arm
n Non-handed n Non-handed n Includes LONG ROD AND SHOE,
n With black end caps n Standard 4820-79LR for deep reveals
n Optional
n Standard

Installation Accessories

4820-18 4820-18G 4820-3377
Plate Plate Door Position Switch Kit
n Requires minimum 1-3/4˝ n Requires minimum 1-3/4˝ n Provides feedback when the
(44 mm) minimum head frame (44 mm) minimum head frame door reaches the fully opened
and 2˝ (51 mm) top rail and 2˝ (51 mm) top rail position
n Standard n Standard n Specify RH or LH when ordering

G21
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
