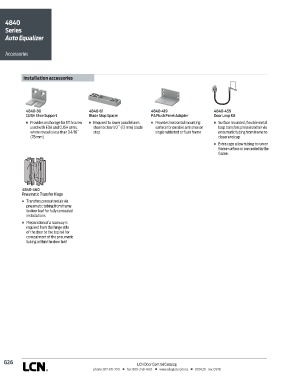

4840
Series
Auto Equalizer

Accessories

Installation accessories

4840-30 4840-61 4840-419 4840-459
CUSH Shoe Support Blade Stop Spacer PA Flush Panel Adapter Door Loop Kit
n Provides anchorage for fifth screw n Required to lower parallel arm n Provides horizontal mounting n Surface mounted, flexible metal
used with EDA and CUSH arms, shoe to clear 1/2˝ (13 mm) blade surface for parallel arm shoe on loop transfers pressurized air via
where reveal is less than 3-1/16˝ stop single rabbeted or flush frame pneumatic tubing from frame to
(78 mm) closer end cap
n Extra caps allow tubing to run on
frame surface or concealed in the
frame.

4840-460
Pneumatic Transfer Hinge
n Transfers pressurized air via
pneumatic tubing from frame
to door leaf for fully concealed
installations
n Preparation of a raceway is
required from the hinge stile
of the door to the top rail for
concealment of the pneumatic
tubing within the door leaf

G26 LCN Door Control Catalog
