4840
Series
Auto Equalizer

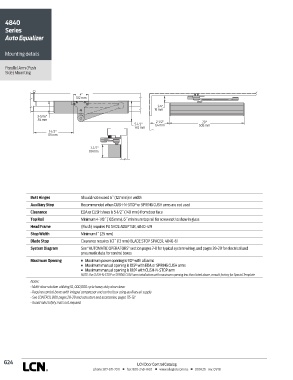

Mounting details

Parallel Arm (Push
Side) Mounting

4"
102 mm
3/4"
19 mm
3-5/16"
84 mm 2-1/2"
20"
5-1/2" 64 mm 508 mm
140 mm
7-1/2"
191 mm
3-1/2"
89 mm

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended when CUSH-N-STOP or SPRING CUSH arms are not used
Clearance EDA or CUSH shoes is 5-1/2˝ (140 mm) from door face
Top Rail Minimum 4-1/8˝ (105 mm). 6˝ minimum top rail for screw not to show in glass
Head Frame (Flush) requires PA SHOE ADAPTER, 4840-419
Stop Width Minimum 1˝ (25 mm)
Blade Stop Clearance requires 1/2˝ (13 mm) BLADE STOP SPACER, 4840-61
System Diagram See “AUTOMATIC OPERATORS” section pages 7-8 for typical system wiring, and pages 28-29 for electrical and
pneumatic data for control boxes
Maximum Opening n Maximum power opening is 90° with all arms
n Maximum manual opening is 105° with EDA or SPRING CUSH arms
n Maximum manual opening is 100° with CUSH-N-STOP arm
NOTE: For CUSH-N-STOP or SPRING CUSH arm installations with maximum opening less than listed above, consult factory for Special Template
Notes:
• Multi-door solution utilizing 10, 000,000 cycle heavy duty door closer
• Requires control boxes with integral compressor and control box using auxiliary air supply
• See CONTROL BOX pages 28-29 and actuators and accessories, pages 115-131
• Guard rails/safety mats not required

G24 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
