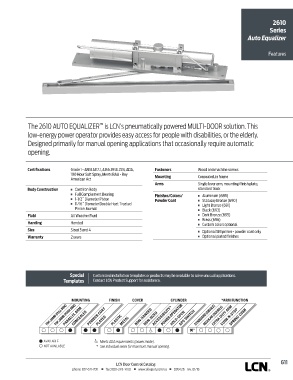

Page 275 - Herrajes Patricios - Catalogo LCN

2610
Series
Auto Equalizer

Features

The 2610 AUTO EQUALIZER is LCN’s pneumatically powered MULTI-DOOR solution. This
™
low-energy power operator provides easy access for people with disabilities, or the elderly.
Designed primarily for manual opening applications that occasionally require automatic
opening.

Certifications Grade 1 - ANSI A117.1, A156.19 UL228, ADA, Fasteners Wood and machine screws
100 Hour Salt Spray, Meets BAA - Buy Mounting Concealed, in frame
American Act
Arms Single lever arm, mounting/finish plate,
Body Construction n Cast Iron Body standard track
n Full Complement Bearing Finishes/Colors/ n Aluminum (689)
n 1-1/2˝ Diameter Piston Powder Coat n Statuary Bronze (690)
n 11/16˝ Diameter Double Heat Treated n Light Bronze (691)
Pinion Journal n Black (693)
Fluid All Weather Fluid n Dark Bronze (695)
n Brass (696)
Handing Handed n Custom colors optional
Size Sized 3 and 4 n Optional SRI primer - powder coat only
Warranty 2 years n Optional plated finishes

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
POWER OPERATOR
TOP JAMB (PUSH SIDE)
TOP JAMB (PULL SIDE) PARALLEL ARM POWDER COAT PLASTIC METAL NON-HANDED ACCESSIBILITY* HOLD-OPEN DPS SWITCH STANDARD (SINGLE) EXTRA DUTY ARM SPRING CUSH
REGULAR (DOUBLE)
CUSH-N-STOP
CONCEALED
NON-SIZED
PLATED
AVAILABLE Meets ADA requirements (power mode).
NOT AVAILABLE * See individual series for maximum manual opening.

G11
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
