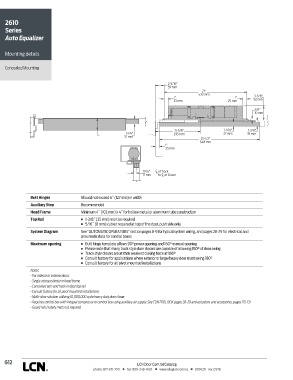

Page 276 - Herrajes Patricios - Catalogo LCN

2610
Series
Auto Equalizer

Mounting details

Concealed Mounting

2-5/16"
59 mm
21"
533 mm
1" 1" 3-5/8"
25 mm 25 mm 92 mm
3/8"
10 mm

11-5/8" 1-1/16" 1-3/8"
1-1/4" 295 mm 27 mm 35 mm
32 mm
25-1/2"
648 mm
1"
25 mm

11/16" of Track
17 mm to of Closer

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended
Head Frame Minimum 4˝ (102 mm) x 4˝ for hollow metal or aluminum tube construction
Top Rail n 1-3/8˝ (35 mm) mortise required
n 5/16˝ (8 mm) cutout required at top of the door, push side only
System Diagram See “AUTOMATIC OPERATORS” section pages 8-9 for typical system wiring, and pages 28-29 for electrical and
pneumatic data for control boxes
Maximum opening n Butt hinge template allows 90° power opening and 160° manual opening
n Please note that many track style door closers are capable of allowing 180° of door swing
n Track style closers are at their weakest closing force at 180°
n Consult factory for applications where exterior or large/heavy door must swing 180°
n Consult factory for all pivot mounted installations
Notes:
• For interior or exterior doors
• Single acting cylinder in head frame
• Concealed arm and track in door top rail
• Consult factory for all pivot mounted installations.
• Multi-door solution utilizing 10,000,000 cycle heavy duty door closer
• Requires control box with integral compressor or control box using auxiliary air supply. See CONTROL BOX pages 28-29 and actuators and accessories, pages 115-131
• Guard rails/safety mats not required

G12 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
