2610
Series

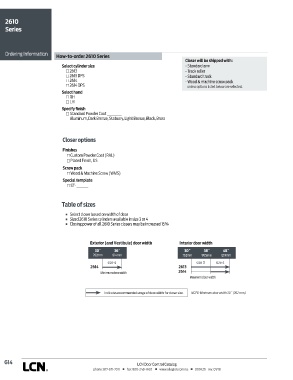

Ordering Information How-to-order 2610 Series
Closer will be shipped with:
Select cylinder size - Standard arm
2613 - Track roller
2613 DPS - Standard track
2614 - Wood & machine screw pack
2614 DPS unless options listed below are selected.
Select hand
RH
LH
Specify finish
Standard Powder Coat __________
Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass

Closer options
Finishes
Custom Powder Coat (RAL)
Plated Finish, US
Screw pack
Wood & Machine Screw (WMS)
Special template
ST- ________

Table of sizes

n Select closer based on width of door
n Sized 2610 Series cylinders available in size 3 or 4
n Closing power of all 2610 Series closers may be increased 15%

Exterior (and Vestibule) door width Interior door width
30˝ 36˝ 30˝ 38˝ 48˝
762mm 914mm 762mm 965mm 1219mm
size 4 size 3 size 4
2614 2613
Minimum door width 2614
Minimum door width

Indicates recommended range of door width for closer size. NOTE: Minimum door width 30˝ (762 mm).
