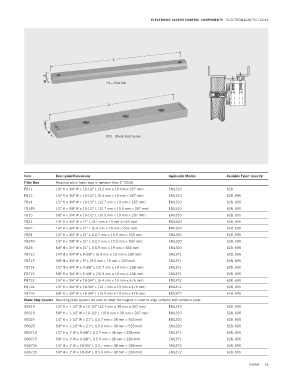

ELECTRONIC ACCESS CONTROL COMPONENTS ELECTROMAGNETIC LOCKS

L

H
W FB—Filler Bar

L

H
W
BSS—Blade Stop Spacer

Item Description/Dimensions Applicable Models Available Finish (specify)
Filler Bars Required when frame stop is narrower than 2" (50.8).
FB11 1/8" H × 3/4" W × 10-1/2" L (3.2 mm × 19 mm × 267 mm) EML310 628
FB12 1/4" H × 3/4" W × 10-1/2" L (6.4 mm × 19 mm × 267 mm) EML310 628, 695
FB14 1/2" H × 3/4" W × 10-1/2" L (12.7 mm × 19 mm × 267 mm) EML310 628, 695
FB14N 1/2" H × 5/8" W × 10-1/2" L (12.7 mm × 15.9 mm × 267 mm) EML310 628, 695
FB15 5/8" H × 3/4" W × 10-1/2" L (15.9 mm × 19 mm × 267 mm) EML310 628, 695
FB21 1/8" H × 3/4" W × 21" L (3.2 mm × 19 mm × 533 mm) EML320 628, 695
FB22 1/4" H × 3/4" W × 21" L (6.4 mm × 19 mm × 533 mm) EML320 628, 695
FB24 1/2" H × 3/4" W × 21" L (12.7 mm × 15.9 mm × 533 mm) EML320 628, 695
FB24N 1/2" H × 5/8" W × 21" L (12.7 mm × 15.9 mm × 533 mm) EML320 628, 695
FB25 5/8" H × 3/4" W × 21" L (15.9 mm × 19 mm × 533 mm) EML320 628, 695
FB712 1/4" H × 3/4" W × 9-3/8" L (6.4 mm × 19 mm × 238 mm) EML371 628, 695
FB713 3/8" H × 3/4" W × 9" L (9.5 mm × 19 mm × 229 mm) EML371 628, 695
FB714 1/2" H × 3/4" W × 9-3/8" L (12.7 mm × 19 mm × 238 mm) EML371 628, 695
FB715 5/8" H × 3/4" W × 9-3/8" L (15.9 mm × 19 mm × 238 mm) EML371 628, 695
FB722 1/4" H × 3/4" W × 18-3/4" L (6.4 mm × 19 mm × 476 mm) EML372 628, 695
FB724 1/2" H × 3/4" W × 18-3/4" L (12.7 mm × 19 mm × 476 mm) EML372 628, 695
FB725 5/8" H × 3/4" W × 18-3/4" L (15.9 mm × 19 mm × 476 mm) EML372 628, 695
Blade Stop Spacers Mounting plate spacers are used to lower the magnet in order to align correctly with armature plate.
BSS14 1/2" H × 1-1/2" W × 10-1/2" (12.7 mm × 38 mm × 267 mm) EML310 628, 695
BSS15 5/8" H × 1-1/2" W × 10-1/2" L (15.9 mm × 38 mm × 267 mm) EML310 628, 695
BSS24 1/2" H × 1-1/2" W × 21" L (12.7 mm × 38 mm × 533 mm) EML320 628, 695
BSS25 5/8" H × 1-1/2" W × 21" L (15.9 mm × 38 mm × 533 mm) EML320 628, 695
BSS714 1/2" H × 1" W × 9-3/8" L (12.7 mm × 38 mm × 238 mm) EML371 628, 695
BSS715 5/8" H × 1" W × 9-3/8" L (15.9 mm × 38 mm × 238 mm) EML371 628, 695
BSS724 1/2" H × 1" W × 18-3/4" L (12.7 mm × 38 mm × 238 mm) EML372 628, 695
BSS725 5/8" H × 1" W × 18-3/4" L (15.9 mm × 38 mm × 238 mm) EML372 628, 695

DORMA 25
