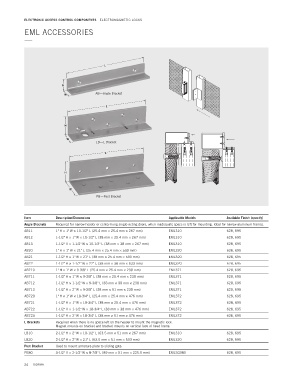

ELECTRONIC ACCESS CONTROL COMPONENTS ELECTROMAGNETIC LOCKS
EML ACCESSORIES
—

L

H
W AB—Angle Bracket

L

H

W
LB—L Bracket
L

H

W
PB—Post Bracket

Item Description/Dimensions Applicable Models Available Finish (specify)
Angle Brackets Required for narrow header or center-hung single-acting doors, when inadequate space is left for mounting. Ideal for narrow aluminum frames.
AB11 1" H × 1" W × 10-1/2" L (25.4 mm × 25.4 mm × 267 mm) EML310 628, 695
AB12 1-1/2" H × 1" W × 10-1/2" L (38 mm × 25.4 mm × 267 mm) EML310 628, 695
AB13 1-1/2" H × 1-1/2" W × 10-1/2" L (38 mm × 38 mm × 267 mm) EML310 628, 695
AB20 1" H × 1" W × 21" L (25.4 mm × 25.4 mm × 533 mm) EML320 628, 695
AB21 1-1/2" H × 1" W × 21" L (38 mm × 25.4 mm × 533 mm) EML320 628, 695
AB22 1-1/2" H × 1-1/2" W × 22" L (38 mm × 38 mm × 533 mm) EML320 628, 695
AB710 1" H × 1" W × 9-3/8" L (25.4 mm × 25.4 mm × 238 mm) EML371 628, 695
AB711 1-1/2" H × 1" W × 9-3/8" L (38 mm × 25.4 mm × 238 mm) EML371 628, 695
AB712 1-1/2" H × 1-1/2" W × 9-3/8" L (38 mm × 38 mm × 238 mm) EML371 628, 695
AB713 1-1/2" H × 2" W × 9-3/8" L (38 mm × 51 mm × 238 mm) EML371 628, 695
AB720 1" H × 1" W × 18-3/4" L (25.4 mm × 25.4 mm × 476 mm) EML372 628, 695
AB721 1-1/2" H × 1" W × 18-3/4" L (38 mm × 25.4 mm × 476 mm) EML372 628, 695
AB722 1-1/2" H × 1-1/2" W × 18-3/4" L (38 mm × 38 mm × 476 mm) EML372 628, 695
AB723 1-1/2" H × 2" W × 18-3/4" L (38 mm × 51 mm × 476 mm) EML372 628, 695
L Brackets Required when there is no space left on the header to mount the magnetic lock.
Magnet mounts on bracket and bracket mounts on vertical face of head frame.
LB10 2-1/2" H × 2" W × 10-1/2" L (63.5 mm × 51 mm × 267 mm) EML310 628, 695
LB20 2-1/2" H × 2" W × 21" L (63.5 mm × 51 mm × 533 mm) EML320 628, 695
Post Bracket Used to mount armature plate to sliding gate.
PB80 3-1/2" H × 2-1/2" W × 8-7/8" L (89 mm × 51 mm × 225.5 mm) EMLSG380 628, 695

24 DORMA
