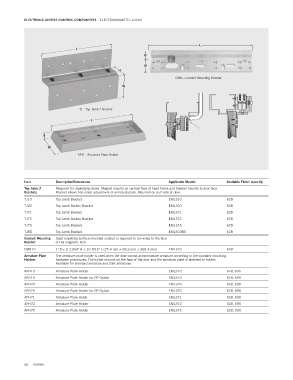

ELECTRONIC ACCESS CONTROL COMPONENTS ELECTROMAGNETIC LOCKS

L
L
H

W
H
CMB—Conduit Mounting Bracket
W

TJ—Top Jamb Z Bracket

L

H

W
APH—Armature Plate Holder

Item Description/Dimensions Applicable Models Available Finish (specify)
Top Jamb Z Required for inswinging doors. Magnet mounts on vertical face of head frame and bracket mounts to door face.
Brackets Bracket allows horizontal adjustment of armature plate. Mounted on pull side of door.
TJ10 Top Jamb Bracket EML310 628
TJ20 Top Jamb Double Bracket EML320 628
TJ71 Top Jamb Bracket EML371 628
TJ72 Top Jamb Double Bracket EML372 628
TJ75 Top Jamb Bracket EML375 628
TJ80 Top Jamb Bracket EMLSG380 628
Conduit Mounting Used anywhere surface mounted conduit is required to run wires to the face
Bracket of the magnetic lock.
CMB10 1" D × 2-11/64" H × 10-9/16" L (25.4 mm × 68.3 mm × 268.3 mm) EML310 628
Armature Plate The armature plate holder is used when the door cannot accommodate armature according to the standard mounting
Holders hardware procedures. The holder mounts on the face of the door and the armature plate is fastened to holder.
Available for standard armature and DSR armatures.
APH10 Armature Plate Holder EML310 628, 695
APH15 Armature Plate Holder for DP Option EML310 628, 695
APH20 Armature Plate Holder EML320 628, 695
APH25 Armature Plate Holder for DP Option EML320 628, 695
APH71 Armature Plate Holde EML371 628, 695
APH72 Armature Plate Holder EML372 628, 695
APH75 Armature Plate Holder EML375 628, 695

26 DORMA
