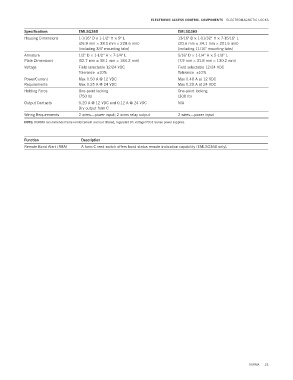

ELECTRONIC ACCESS CONTROL COMPONENTS ELECTROMAGNETIC LOCKS

Specifications EMLSG360 EMLSG365
Housing Dimensions 1-1/16" D × 1-1/2" H × 9" L 13/16" D × 1-11/32" H × 7-15/16" L
(26.9 mm × 38.1 mm × 228.6 mm) (20.6 mm × 34.1 mm × 201.6 mm)
(including 3/4" mounting tabs) (including 11/16" mounting tabs)
Armature 1/2" D × 1-1/2" H × 7-1/4" L 5/16" D × 1-1/4" H × 5-1/8" L
Plate Dimensions (12.7 mm × 38.1 mm × 184.2 mm) (7.9 mm × 31.8 mm × 130.2 mm)
Voltage Field selectable 12/24 VDC Field selectable 12/24 VDC
Tolerance ±10% Tolerance ±10%
Power/Current Max 0.50 A @ 12 VDC Max 0.40 A at 12 VDC
Requirements Max 0.25 A @ 24 VDC Max 0.20 A at 24 VDC
Holding Force One-point locking One-point locking
(750 lb) (300 lb)
Output Contacts 0.20 A @ 12 VDC and 0.12 A @ 24 VDC N/A
Dry output form C
Wiring Requirements 2 wires—power input; 2 wires relay output 2 wires—power input
NOTE: DORMA recommends frame reinforcement and our filtered, regulated DC voltage PS53 Series power supplies.

Function Description
Remote Bond Alert (RBA) A form C reed switch offers bond status remote indication capability (EMLSG360 only).

DORMA 23
