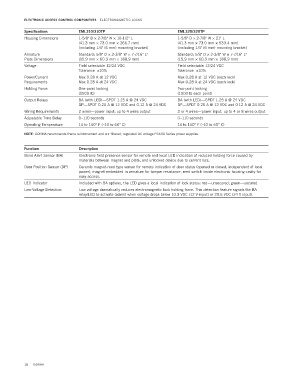

ELECTRONIC ACCESS CONTROL COMPONENTS ELECTROMAGNETIC LOCKS

Specifications EML310/310TP EML320/320TP
Housing Dimensions 1-5/8" D × 2-7/8" W × 10-1/2" L 1-5/8" D × 2-7/8" W × 21" L
(41.3 mm × 73.0 mm × 266.7 mm) (41.3 mm × 73.0 mm × 533.4 mm)
(including 1/4" (6 mm) mounting bracket) (including 1/4" (6 mm) mounting bracket)
Armature Standard: 5/8" D × 2-3/8" W × 7-7/16" L* Standard: 5/8" D × 2-3/8" W × 7-7/16" L*
Plate Dimensions (15.9 mm × 60.3 mm × 188.9 mm) (15.9 mm × 60.3 mm × 188.9 mm)
Voltage Field selectable 12/24 VDC Field selectable 12/24 VDC
Tolerance ±10% Tolerance ±10%
Power/Current Max 0.28 A at 12 VDC Max 0.28 A at 12 VDC (each lock)
Requirements Max 0.28 A at 24 VDC Max 0.28 A at 24 VDC (each lock)
Holding Force One-point locking Two-point locking
(1500 lb) (1500 lb each point)
Output Relays BA (with LED)—SPDT 1.25 A @ 24 VDC BA (with LED)—SPDT 1.25 A @ 24 VDC
DP—SPDT 0.20 A @ 12 VDC and 0.12 A @ 24 VDC DP—SPDT 0.20 A @ 12 VDC and 0.12 A @ 24 VDC
Wiring Requirements 2 wires—power input; up to 4 wires output 2 or 4 wires—power input; up to 4 or 8 wires output
Adjustable Time Delay 0–110 seconds 0–110 seconds
Operating Temperature 14 to 140° F (–10 to 60° C) 14 to 140° F (–10 to 60° C)

NOTE: DORMA recommends frame reinforcement and our filtered, regulated DC voltage PS600 Series power supplies.

Function Description
Bond Alert Sensor (BA) Electronic field presence sensor for remote and local LED indication of reduced holding force caused by
materials between magnet and plate, and unlocked device due to current loss.
Door Position Sensor (DP) Ceramic magnet-reed type sensor for remote indication of door status (opened or closed, independent of local
power); magnet embedded in armature for tamper resistance; reed switch inside electronic housing cavity for
easy access.
LED Indicator Included with BA options, the LED gives a local indication of lock status: red—unsecured; green—secured.
Low-Voltage Detection Low voltage dramatically reduces electromagnetic lock holding force. This detection feature signals the BA
relay/LED to activate (alarm) when voltage drops below 10.3 VDC (12 V input) or 20.5 VDC (24 V input).
