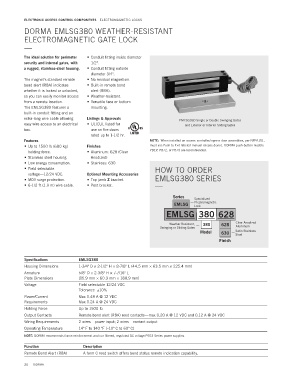

ELECTRONIC ACCESS CONTROL COMPONENTS ELECTROMAGNETIC LOCKS
DORMA EMLSG380 WEATHER-RESISTANT
ELECTROMAGNETIC GATE LOCK
—

The ideal solution for perimeter . Conduit fitting inside diameter
security and internal gates, with 1/2".
a rugged, stainless-steel housing. . Conduit fitting outside
diameter 3/4".
The magnet's standard remote . No residual magnetism.
bond alert (RBA) indicates . Built-in remote bond
whether it is locked or unlocked, alert (RBA).
so you can easily monitor access . Weather-resistant.
from a remote location. . Versatile face or bottom
The EMLSG380 features a mounting.
built-in conduit fitting and an

extra-long wire cable allowing Listings & Approvals EMLSG380 Single or Double Swinging Gates
easy wire access to an electrical . UL/CUL listed for and Exterior or Interior Sliding Gates
box. use on fire doors
rated up to 1-1/2 hr.
Features NOTE: When installed on access-controlled egress door assemblies, per NFPA101,
. Up to 1500 lb (680 kg) Finishes must use Push to Exit labeled manual release device. DORMA push-button models
holding force. . Aluminum: 628 (Clear PBEP, PB72, or PB73 are recommended.
. Stainless steel housing. Anodized)
. Low energy consumption. . Stainless: 630
. Field selectable HOW TO ORDER
voltage—12/24 VDC. Optional Mounting Accessories
. MOV surge protection. . Top jamb Z bracket. EMLSG380 SERIES
. 6-1/2 ft (1.9 m) wire cable. . Post bracket. —

Series Specialized
EMLSG — Electromagnetic
Lock
EMLSG 380 628

Weather-Resistant, — 380 628 — Clear Anodized
Swinging or Sliding Gates Aluminum
Model 630 — Satin Stainless
Steel
Finish

Specifications EMLSG380
Housing Dimensions 1-3/4" D × 2-1/2" H × 8-7/8" L (44.5 mm × 63.5 mm × 225.4 mm)
Armature 5/8" D × 2-3/8" H × 7-7/16" L
Plate Dimensions (15.9 mm × 60.3 mm × 188.9 mm)
Voltage Field selectable 12/24 VDC
Tolerance ±10%
Power/Current Max 0.48 A @ 12 VDC
Requirements Max 0.24 A @ 24 VDC
Holding Force Up to 1500 lb
Output Contacts Remote bond alert (RBA) reed contacts—max 0.20 A @ 12 VDC and 0.12 A @ 24 VDC
Wiring Requirements 2 wires—power input; 2 wires—contact output
Operating Temperature 14º F to 140 ºF (–10º C to 60º C)
NOTE: DORMA recommends frame reinforcement and our filtered, regulated DC voltage PS53 Series power supplies.

Function Description
Remote Bond Alert (RBA) A form C reed switch offers bond status remote indication capability.

20 DORMA
