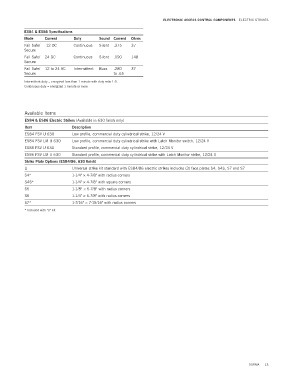

ELECTRONIC ACCESS CONTROL COMPONENTS ELECTRIC STRIKES

ES84 & ES86 Specifications
Mode Current Duty Sound Current Ohms
Fail Safe/ 12 DC Continuous Silent .375 37
Secure
Fail Safe/ 24 DC Continuous Silent .190 148
Secure
Fail Safe/ 12 to 24 AC Intermittent Buzz .280 37
Secure to .65

Intermittent duty = energized less than 1 minute with duty ratio 1:5.
Continuous duty = energized 1 minute or more

Available Items
ES84 & ES86 Electric Strikes (Available in 630 finish only)
Item Description
ES84 FSV U 630 Low profile, commercial duty cylindrical strike, 12/24 V
ES84 FSV LM U 630 Low profile, commercial duty cylindrical strike with Latch Monitor switch, 12/24 V
ES86 FSV U 630 Standard profile, commercial duty cylindrical strike, 12/24 V
ES86 FSV LM U 630 Standard profile, commercial duty cylindrical strike with Latch Monitor strike, 12/24 V
Strike Plate Options (ES84/86, 630 finish)
U Universal strike kit standard with ES84/86 electric strikes includes (3) face plates S4, S4S, S7 and S7
S4* 1-1/4" × 4-7/8" with radius corners
S4S* 1-1/4" × 4-7/8" with square corners
S5 1-1/8" × 5-7/8" with radius corners
S6 1-1/4" × 6-7/8" with radius corners
S7* 1-7/16" × 7-15/16" with radius corners
* Included with "U" kit

DORMA 13
