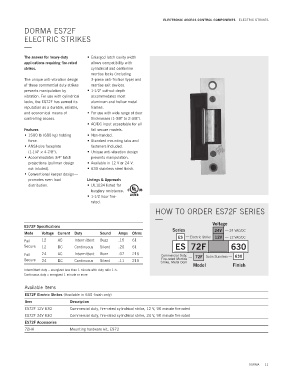

ELECTRONIC ACCESS CONTROL COMPONENTS ELECTRIC STRIKES
DORMA ES72F
ELECTRIC STRIKES
—

The answer for heavy-duty . Enlarged latch cavity width
applications requiring fire-rated allows compatibility with
strikes. cylindrical and centerline
mortise locks (including
The unique anti-vibration design 3-piece anti-friction type) and
of these commercial duty strikes mortise exit devices.
prevents manipulation by . 1-1/2" cut-out depth
vibration. For use with cylindrical accommodates most
locks, the ES72F has earned its aluminum and hollow metal
reputation as a durable, reliable, frames.
and economical means of . For use with wide range of door
controlling access. thicknesses (1-3/8" to 2-3/8").
. AC/DC input acceptable for all
Features fail secure models.
. 1500 lb (680 kg) holding . Non-handed.
force. . Standard mounting tabs and
. ANSI-size faceplate fasteners included.
(1-1/4" × 4-7/8"). . Unique anti-vibration design
. Accommodates 3/4" latch prevents manipulation.
projections (pullman design . Available in 12 V or 24 V.
not inluded). . 630 stainless steel finish.
. Conventional keeper design—
promotes even load Listings & Approvals
distribution. . UL1034 listed for
burglary resistance.
. 1-1/2 hour fire-
rated.
HOW TO ORDER ES72F SERIES
—
ES72F Specifications Series Voltage
Mode Voltage Current Duty Sound Amps Ohms 24V — 24 VAC/DC
ES — Electric Strike 12V — 12 VAC/DC
Fail 12 AC Intermittent Buzz .15 61
Secure 12 DC Continuous Silent .20 61 ES 72F 630
Fail 24 AC Intermittent Buzz .07 215 Commercial Duty, — 72F Satin Stainless — 630
Fire-rated Mortise
Secure 24 DC Continuous Silent .11 215 Strike, Metal Door
Model Finish
Intermittent duty = energized less than 1 minute with duty ratio 1:5.
Continuous duty = energized 1 minute or more

Available Items
ES72F Electric Strikes (Available in 630 finish only)
Item Description
ES72F 12V 630 Commercial duty, fire-rated cylindrical strike, 12 V, 90 minute fire rated
ES72F 24V 630 Commercial duty, fire-rated cylindrical strike, 24 V, 90 minute fire rated
ES72F Accessories
72HK Mounting hardware kit, ES72

DORMA 11
