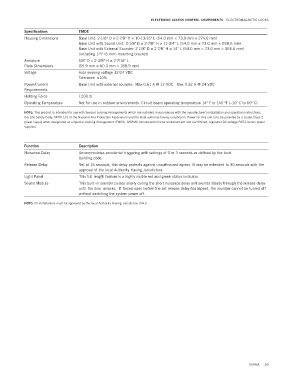

ELECTRONIC ACCESS CONTROL COMPONENTS ELECTROMAGNETIC LOCKS

Specifications EMDE
Housing Dimensions Base Unit: 2-1/8" D × 2-7/8" H × 10-13/16" L (54.0 mm × 73.0 mm × 274.6 mm)
Base Unit with Sound Unit: 2-1/8" D × 2-7/8" H × 11-3/4" L (54.0 mm × 73.0 mm × 298.5 mm)
Base Unit with External Sounder: 2-1/8" D × 2-7/8" H × 14" L (54.0 mm × 73.0 mm × 355.6 mm)
(including 1/4" (6 mm) mounting bracket)
Armature 5/8" D × 2-3/8" H × 7-7/16" L
Plate Dimensions (15.9 mm × 60.3 mm × 188.9 mm)
Voltage Auto sensing voltage 12/24 VDC
Tolerance ±10%
Power/Current Base Unit with external sounder: Max 0.61 A @ 12 VDC Max 0.32 A @ 24 VDC
Requirements
Holding Force 1200 lb
Operating Temperature Not for use in outdoor environments. Circuit board operating temperature 14º F to 140 ºF (–10º C to 60º C)

NOTE: This product is intended for use with Special Locking Arrangements which are installed in accordance with the manufacturer's installation and operation instructions,
the Life Safety Code, NFPA 101 of the National Fire Protection Association and the local authority having jurisdiction. Power for this unit is to be provided by a Listed Class 2
power supply when designated as a Special Locking Arrangement (FWAX). DORMA recommends frame reinforcement and our filtered, regulated DC voltage PS53 Series power
supplies.

Function Description
Nuisance Delay Accommodates accidental triggering with settings of 0 to 3 seconds as defined by the local
building code.
Release Delay Set at 15 seconds, this delay protects against unauthorized egress. It may be extended to 30 seconds with the
approval of the local Authority Having Jurisdiction.
Light Panel This full length feature is a highly visible red and green status indicator.
Sound Module This built-in sounder pulses slowly during the short nuisance delay and sounds steady through the release delay
until the door unlocks. If forced open before the set release delay has lapsed, the sounder cannot be turned off
without switching the system power off.
NOTE: All installations must be approved by the local Authority Having Jurisdiction (AHJ)

DORMA 29
