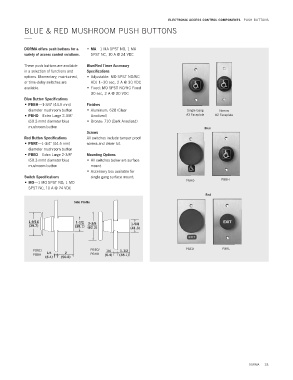

ELECTRONIC ACCESS CONTROL COMPONENTS PUSH BUTTONS
BLUE & RED MUSHROOM PUSH BUTTONS
—

DORMA offers push buttons for a . MA—1 MA SPST NO, 1 MA
variety of access control solutions. SPST NC, 10 A @ 24 VDC

These push buttons are available Blue/Red Timer Accessory
in a selection of functions and Specifications

options. Momentary, maintained, . Adjustable: MO SPST NO/NC
or time-delay switches are ADJ 1−30 sec, 2 A @ 30 VDC
available. . Fixed: MO SPST NO/NC Fixed
30 sec, 2 A @ 30 VDC
Blue Button Specifications
. PBBH—1-3/4" (44.5 mm) Finishes
diameter mushroom button . Aluminum: 628 (Clear Single Gang Narrow
. PBHO—Extra Large 2-3/8" Anodized) #3 Faceplate #2 Faceplate
(60.3 mm) diameter blue . Bronze: 710 (Dark Anodized)
mushroom button Blue
Screws
Red Button Specifications All switches include tamper proof
. PBRE—1-3/4" (44.5 mm) screws and driver bit.
diameter mushroom button
. PBEO—Extra Large 2-3/8" Mounting Options
(60.3 mm) diameter blue . All switches below are surface
mushroom button mount.
. Accessory box available for
Switch Specifications single gang surface mount. PBBH
. MO—1 MO SPST NO, 1 MO PBHO
SPST NC, 10 A @ 24 VDC
Red
Side Profile

1-9/16 1-1/2 1-9/16 1-1/2
2-3/8 1-5/8 (39.7) 2-3/8 1-5/8 (39.7) (38.1)
(60.3) (41.3) (38.1) (60.3) (41.3)

1/4 1-1/2 PBRE/ 1/4 2 PBEO/ 1/4 1-1/2 1/4 2 PBEO PBRE
(6.4) (38.1) PBBH (6.4) (50.8) PBHO (6.4) (38.1) (6.4) (50.8)
