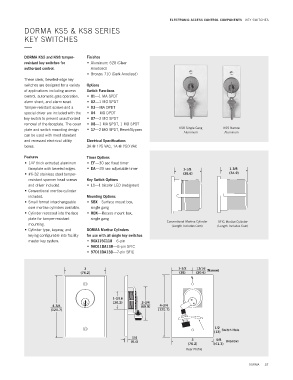

ELECTRONIC ACCESS CONTROL COMPONENTS KEY SWITCHES
DORMA KS5 & KS8 SERIES
KEY SWITCHES
—

DORMA KS5 and KS8 tamper- Finishes
resistant key switches for . Aluminum: 628 (Clear
authorized control. Anodized)
. Bronze: 710 (Dark Anodized)
These sleek, beveled-edge key
switches are designed for a variety Options

of applications including access Switch Functions
control, automatic gate operation, . 01—1 MA SPDT
alarm shunt, and alarm reset. . 02—1 MO SPDT
Tamper-resistant screws and a . 03—MA DPDT
special driver are included with the . 04—MO DPDT
key switch to prevent unauthorized . 07—2 MO SPDT

removal of the faceplate. The cover . 08—1 MA SPDT, 1 MO SPDT
plate and switch mounting design . 17—2 MO SPDT, Reset/Bypass KS8 Single Gang KS5 Narrow
Aluminum
Aluminum
can be used with most standard
and recessed electrical utility Electrical Specifications
boxes. 3A @ 125 VAC, 1A @ 250 VAC
Features Timer Options
. 1/4" thick extruded aluminum . EF—30 sec fixed timer
faceplate with beveled edges. . EA—30 sec adjustable timer 1-1/8 1-3/8
. #6-32 stainless steel tamper- (28.6) (34.9)
resistant spanner head screws Key Switch Options
and driver included. . L1—1 bicolor LED (red/green)
. Conventional mortise cylinder
included. Mounting Options
. Small format interchangeable . SBX—Surface mount box,
core mortise cylinders available. single gang
. Cylinder recessed into the face . RBX—Recess mount box,
plate for tamper-resistant single gang
SFIC Mortise Cylinder
mounting. Conventional Mortise Cylinder (Length Includes Cam)
(Length Includes Cam)
. Cylinder type, keyway, and DORMA Mortise Cylinders
keying configurable into facility for use with all single key switches
master key system. . 90X11SC118—6-pin
. 96D11BA138—6-pin SFIC
. 97D11BA138—7-pin SFIC

3 1-1/2 13/16 (Narrow)
(76.2) (38) (20.6)
C L

1-3/16
(30.2) 2-3/4
4-3/4 (69.9) 4-3/4
(120.7) (120.7)

1/2
(13) Switch Hole
1/4
(6.4) 3 5/8 (Narrow)
(76.2) (41.3)
Rear Profile

DORMA 37
